Butter and cocoa block crusher

Name: Butter and cocoa block crusher
Brand: Milberg
Availability: InStock

Crushing butter and cocoa blocks

butter/cocoa blocksAISI 304

Price from €11,200

⏱ Calculation and quotation within one business day

Get a quotation

CE marking · ISO 9001 · export deliveries, commissioning. Terms →

Projects with this equipment

UIM-01 butter shredder for a production plantMoscow

MRM block cutting machine built to the producer's orderChelyabinsk Region

MRM block cutting machine designed for the customer's taskRostov Region

UIM-01 butter shredder for a butter processorKarachay-Cherkess Republic

UIM-01 unit for shredding butter blocksMoscow

Our clients

Description

The block crusher breaks down 5, 10 and 25 kg blocks of butter or cocoa (chocolate) into fine shavings for fast remelting and other process operations, and can be integrated into a line. Milberg makes stainless steel crushers for butter plants, confectioneries and food production facilities.

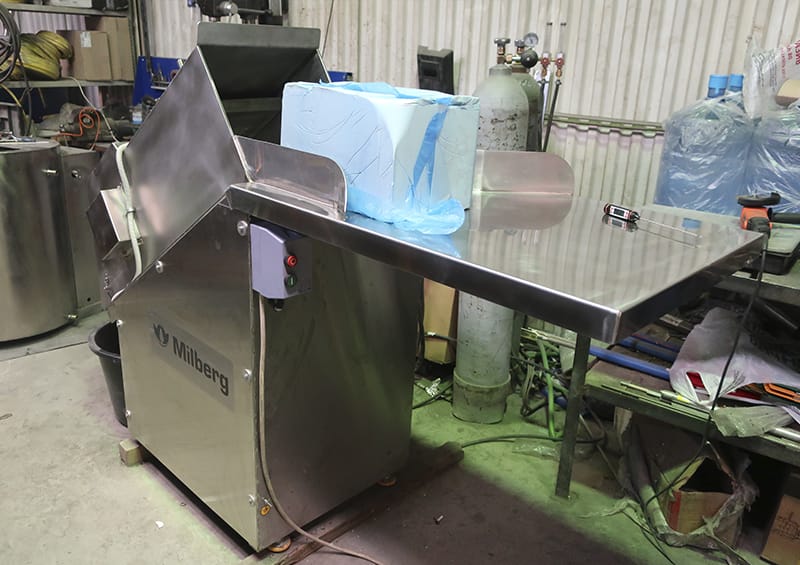

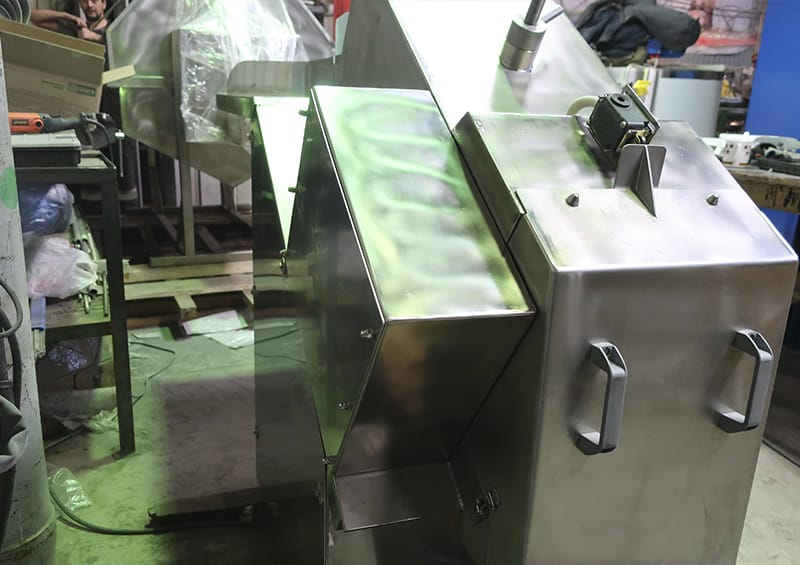

The machine consists of a horizontal loading table and a rotor with knives. Shaving thickness is adjusted with the knife setting screws. All product-contact parts, the cladding and the drive shafts are stainless steel. Surfaces are sandblasted and there are no dead zones, so the machine is easy to clean, and a quick-release cover gives access to the rotor for knife adjustment and cleaning. For chocolate (cocoa) there is a model with a more powerful drive; please specify the product and capacity when ordering.

To find out more and buy a butter and chocolate block crusher, fill in the form below:

Price from €11,200. The final cost depends on the configuration, technical specifications and the tasks the equipment is selected for: volume and capacity, heating type, level of automation and options. Write or call us — our process engineer will select a suitable option and prepare a quotation within one business day.

Advantages

Crushes 20–25 kg butter or cocoa blocks into shavings for fast melting
Used in butter plants, confectioneries and food production facilities
Product-contact parts made of food-grade stainless steel

Specifications

Material	AISI 304
Blocks	butter and cocoa, 5, 10 and 25 kg (typical length 420 mm)
Crushing method	crushing by a rotor with knives
Shaving thickness	adjustable with the knife screws

Included in equipment sets

Processed cheese production equipmentCheese melter, raw material shredding, dosing and cup packing Butter block processing and packing: equipment setShredding, homogenizing, crystallization, cutting and packing

FAQ

What blocks can be crushed?

Butter and cocoa blocks of 5, 10 and 25 kg. The typical block length is 420 mm; for your size we build the machine to order and specify it in the contract.

Can one machine handle both butter and cocoa?

For cocoa we make a model with a more powerful drive. Please specify the product and the required capacity when ordering.

How does the block crusher differ from the ISM unit?

The block crusher breaks the block down by crushing, while the ISM unit cuts it. Both machines can be integrated into a line; we will advise which to choose based on your product and capacity.

Can frozen tvorog be crushed?

Yes, the principle is the same; for tvorog we fit a knife with a finer tooth.

How is shaving thickness adjusted, and how is the machine cleaned?

Thickness is set with the knife setting screws. At the back of the machine there is a quick-release cover that opens the rotor and chamber for adjustment and cleaning.

How much does the crusher cost?

Prices start from €11,200. The final price depends on the product, block size and capacity. We will prepare a quotation within one working day.

Where is this equipment already in operation?

Our website describes 5 projects with this equipment. Regions: Moscow, Chelyabinsk Region, Rostov Region, Karachay-Cherkess Republic. Customers: manufacturing company, dairy plant. See the "Projects with this equipment" block and the Projects section.
