UD-2 dosing and filling unit for bottles and cups
Filling milk and cultured dairy products into bottles and cups
⏱ Calculation and quotation within one business day
CE marking · ISO 9001 · export deliveries, commissioning. Terms →
Description

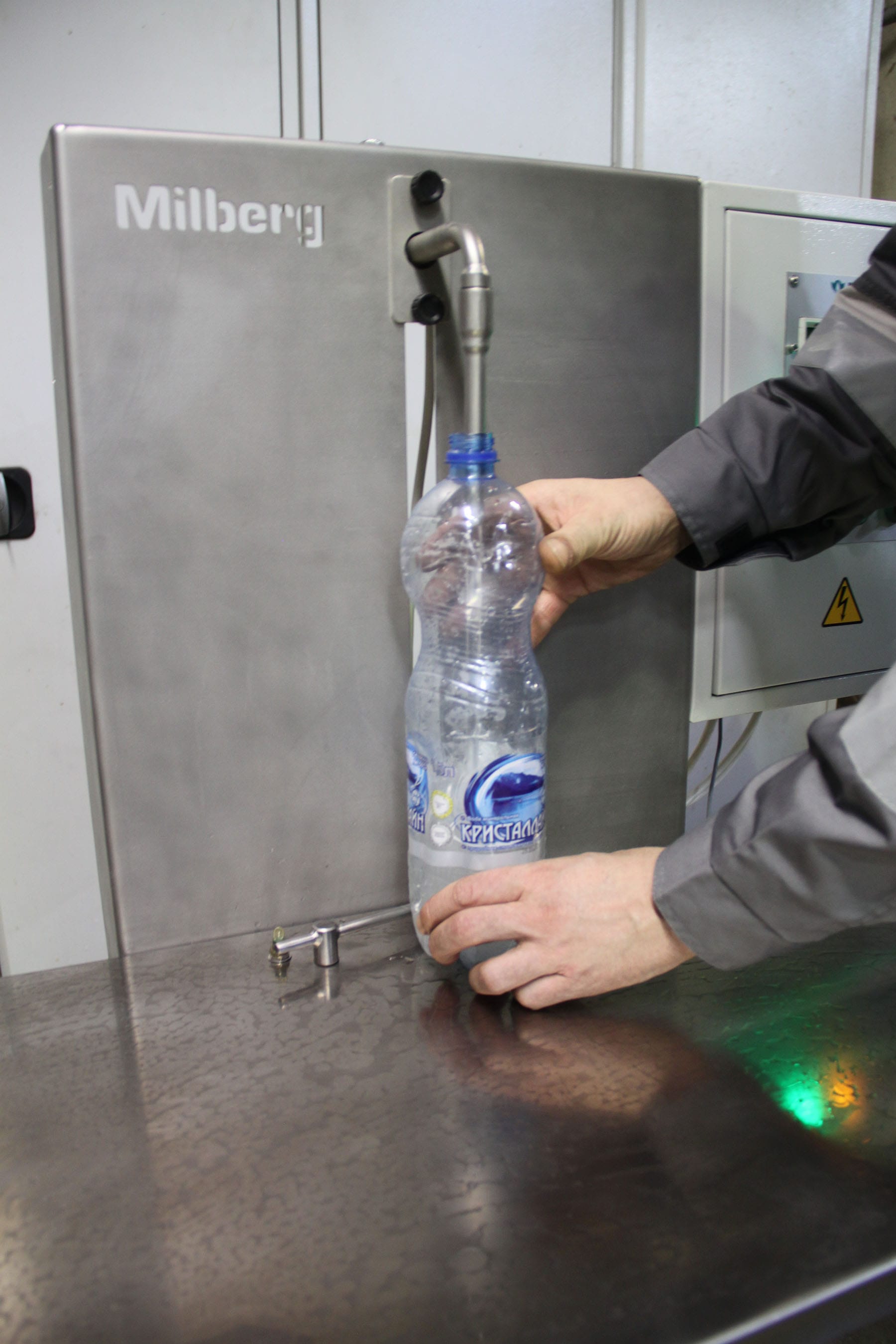

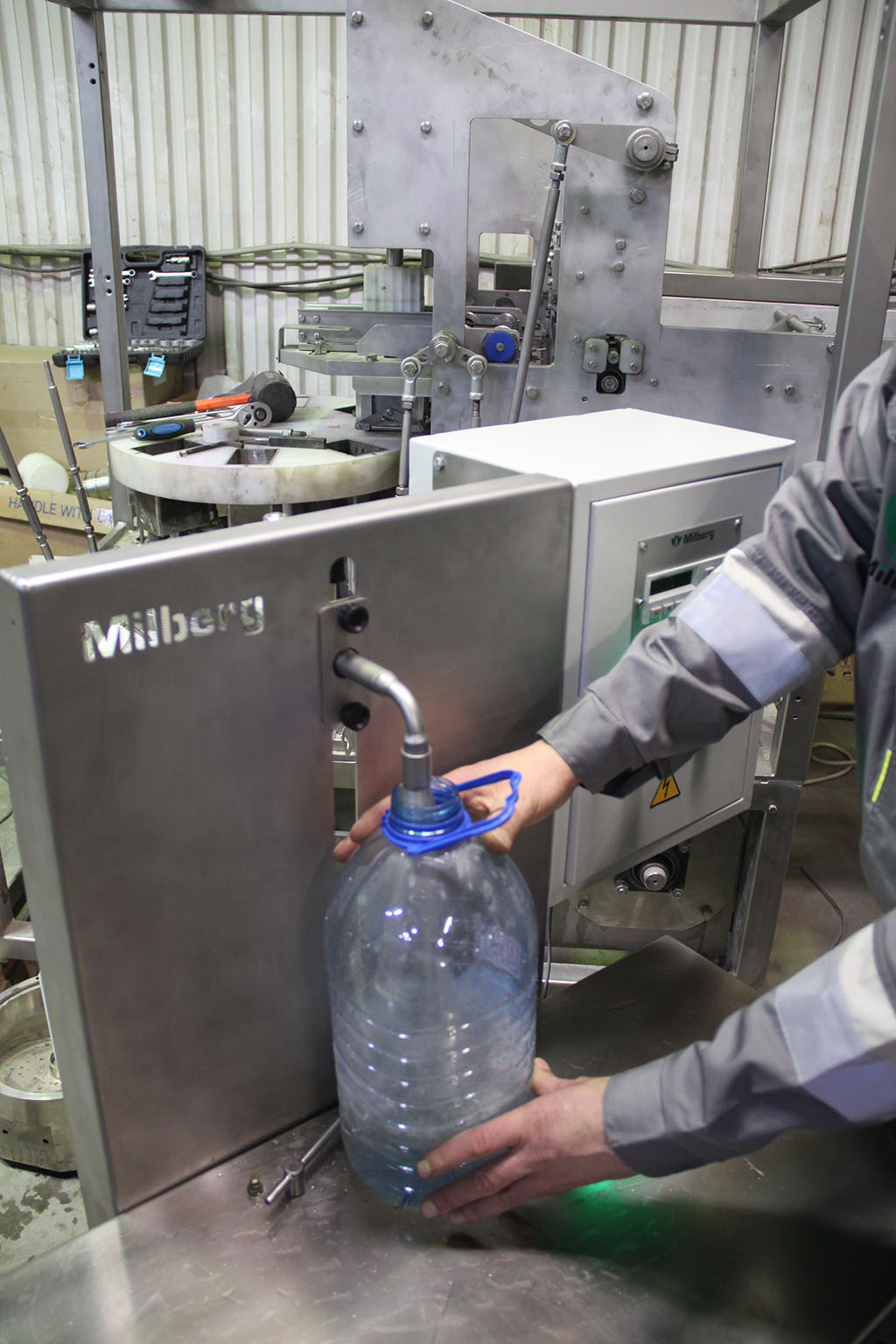

The UD-2 unit doses and fills milk, kefir, ryazhenka, yogurt, sour cream, sauces and other liquid and viscous products into bottles and cups: the dose is adjustable from 100 to 9,000 ml, and the doser adjusts to the container height. The product is fed from the customer's tank, filling is triggered by a foot pedal, and the work table has two positions. Product temperature is up to 60 °C, or up to 80 °C to order. Product-contact parts are food-grade stainless steel.
The product doser can be adjusted to different package heights. The product is dispensed from the customer's tank. For convenience the unit has two work table positions and a foot pedal to dispense the product directly for filling.
Thanks to its design, the doser is easy to maintain. The doser for milk and cultured dairy products is made of food-grade stainless steel, so it is safe for food contact, reliable and durable in operation.
Price from €5,800. The final cost depends on the configuration, technical specifications and the tasks the equipment is selected for: volume and capacity, heating type, level of automation and options. Write or call us — our process engineer will select a suitable option and prepare a quotation within one business day.
Advantages
- Level adjustment for different package heights

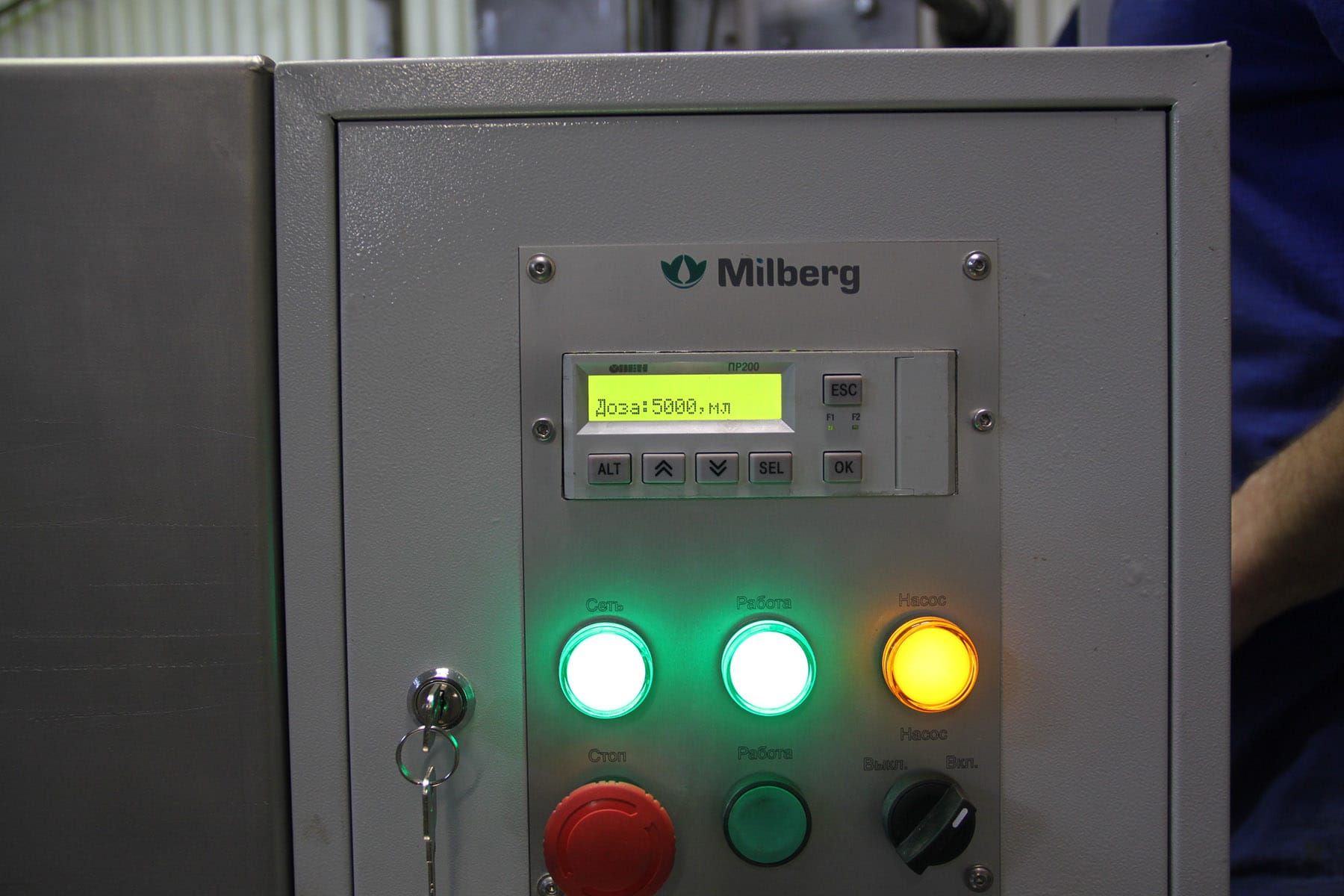

- Control panel
- Works with different liquids and containers
- Easy to maintain
- Safe for food contact
- Adjustable filling dose from 100 to 9,000 ml
- Liquid temperature up to 60 °C; a version for up to 80 °C is available
Specifications
| Dose, ml | 100 to 9,000 |
| Containers | bottles and cups of different heights |
| Product temperature | up to 60 °C (up to 80 °C to order) |
| Filling actuation | foot pedal |
| Material | food-grade stainless steel |
Included in equipment sets
Related articles
FAQ
What dose can be filled?
From 100 to 9,000 ml; the dose is adjustable.
What containers can be filled?
Bottles and cups of different heights — the doser adjusts to the package height.
Is it suitable for sour cream and yogurt?
Yes, the unit handles liquid and viscous products: milk, kefir, ryazhenka, yogurt, sour cream and sauces.
How are the cups sealed after filling?
The UPS-2 unit is available for sealing cups with foil.
How much does the UD-2 cost?
The price is from €5,800. We will prepare a quotation within one working day.
