UFSN cheese string forming unit (chechil)
Chechil cheese, braided cheese
⏱ Calculation and quotation within one business day
CE marking · ISO 9001 · export deliveries, commissioning. Terms →
Our clients
Description

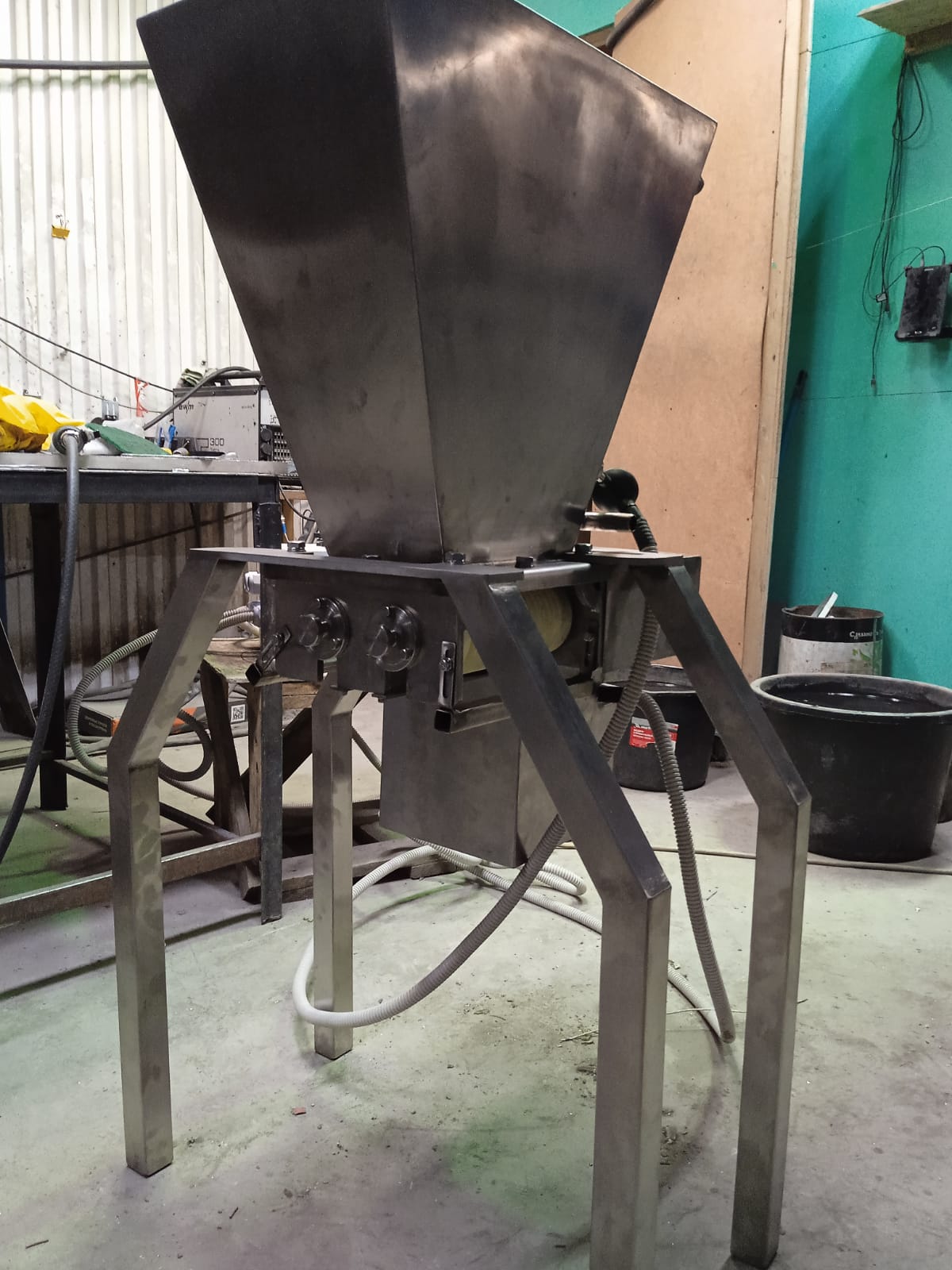

The UFSN cheese string forming unit draws molten cheese mass through die rollers into even strings for chechil cheese, braided cheese and cheese "spaghetti". Output is from 40 kg/h, and string thickness is 4 to 20 mm, set by an interchangeable die. The finished strings go into a water bath and are then cut or braided. The hopper is heated by electric heating elements or by steam / hot water.
The unit can be made to your dimensions and requirements and for higher output.
Advantages:
- modern drive that needs no constant maintenance or repairs; - attractive appearance; - smooth output adjustment; - wide choice of cheese string sizes and shapes by changing the die.
Price from €8,100. The final cost depends on the configuration, technical specifications and the tasks the equipment is selected for: volume and capacity, heating type, level of automation and options. Write or call us — our process engineer will select a suitable option and prepare a quotation within one business day.
Advantages

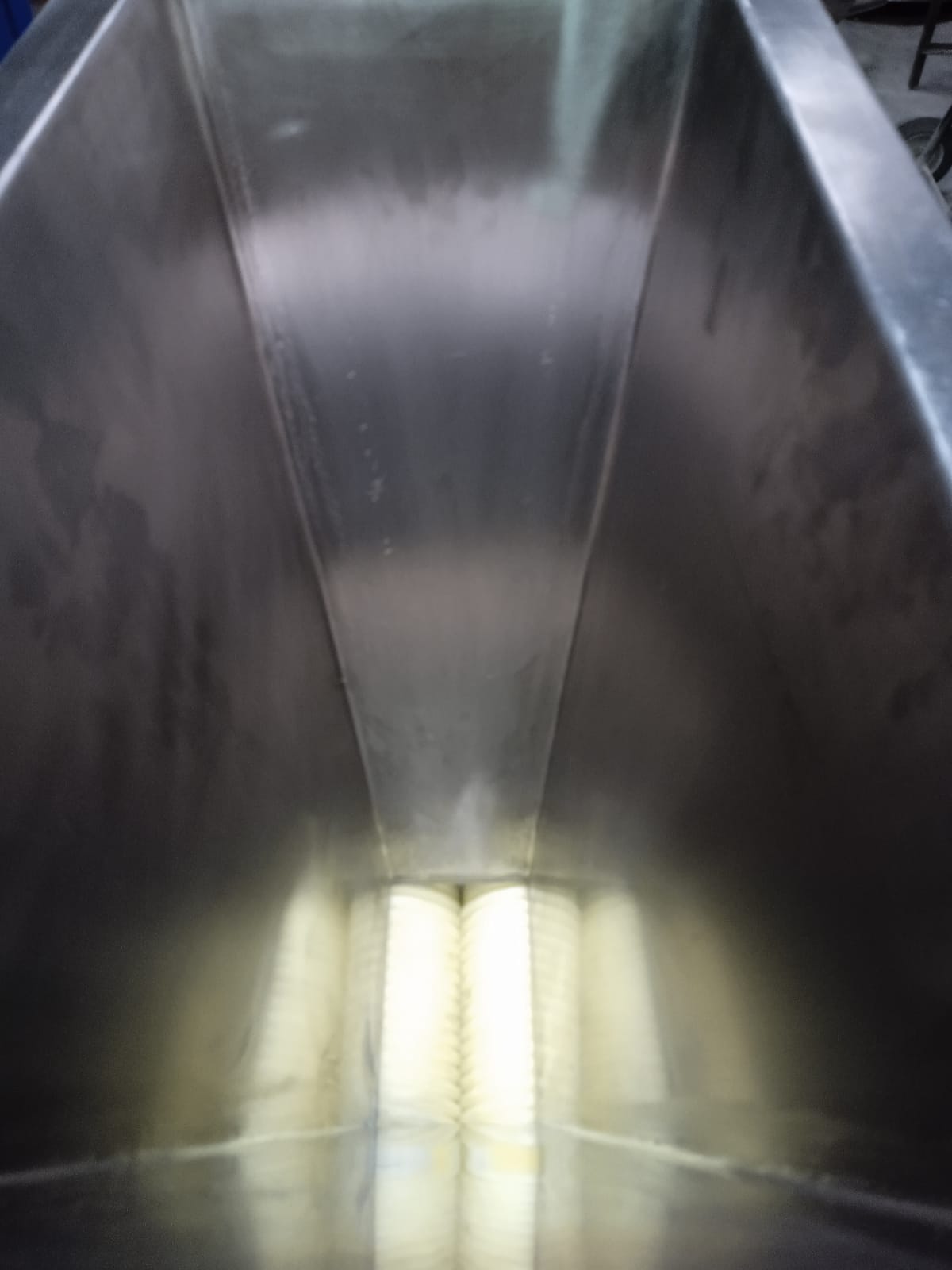

- Quick-change die — switch string format and thickness for different products (chechil, braids, spaghetti)
- Even drawing of the mass through the rollers — strings of uniform cross-section
- Also used in confectionery for forming dough products
- Product-contact parts in food-grade stainless steel
Specifications
| Output, kg/h | from 40 |
| Heater type | steam/water or electric heating elements |
| Hopper jacket temperature, °C | 65 |
| Supply voltage | 220 V or 380 V |
| Installed power, max., kW | 3 |
| Overall dimensions L/W/H, mm | 1500 / 800 / 800 |
| Weight, max., kg | 100 |
| String thickness, mm | 4 to 20 |
Included in equipment sets
FAQ
What is the output?
From 40 kg/h. A higher-output version is possible.
What string thickness can be produced?
From 4 to 20 mm. Thickness and shape are set by the interchangeable die, which is changed to suit the product.
What else is needed for chechil?
A cheese vat for the cheese mass and a cheese melter. There is a ready-made set: a cheese melter, a UFSN unit and a frame on which the melter stands above the forming unit. A belt conveyor is selected to match the roller width of the forming unit.
What kind of heating is used?
Electric heating elements or steam / hot water, as you prefer. The hopper jacket temperature is 65 °C.
How much does the UFSN unit cost?
The price is from €8,100. The final cost depends on output, dies and configuration — quotation within one working day.
Where is this equipment already in operation?
Our website describes 3 projects with this equipment. Regions: Krasnoyarsk Krai, Omsk Region, Kazakhstan. Customers: manufacturing company, private producer. See the "Projects with this equipment" block and the Projects section.
