Description

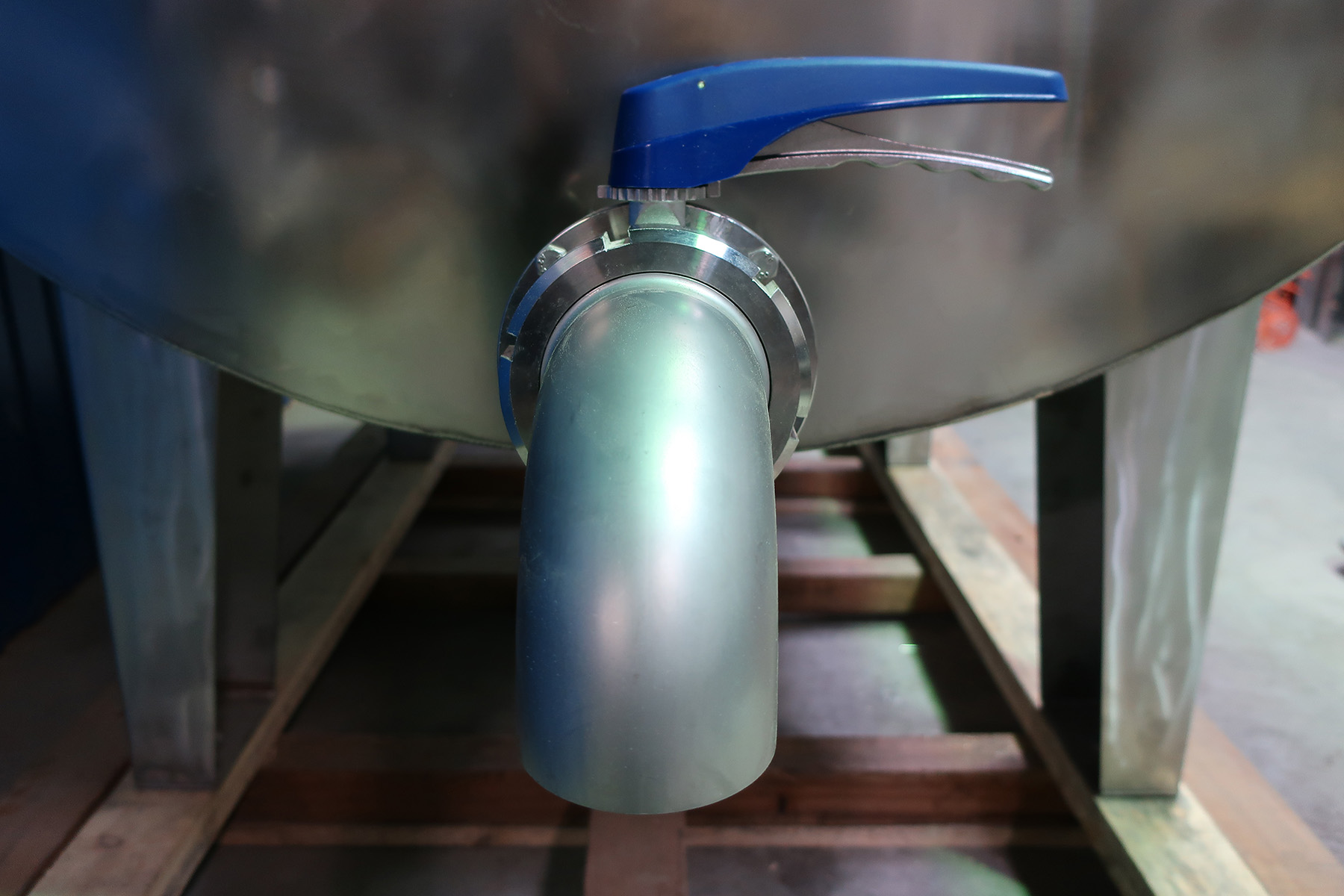

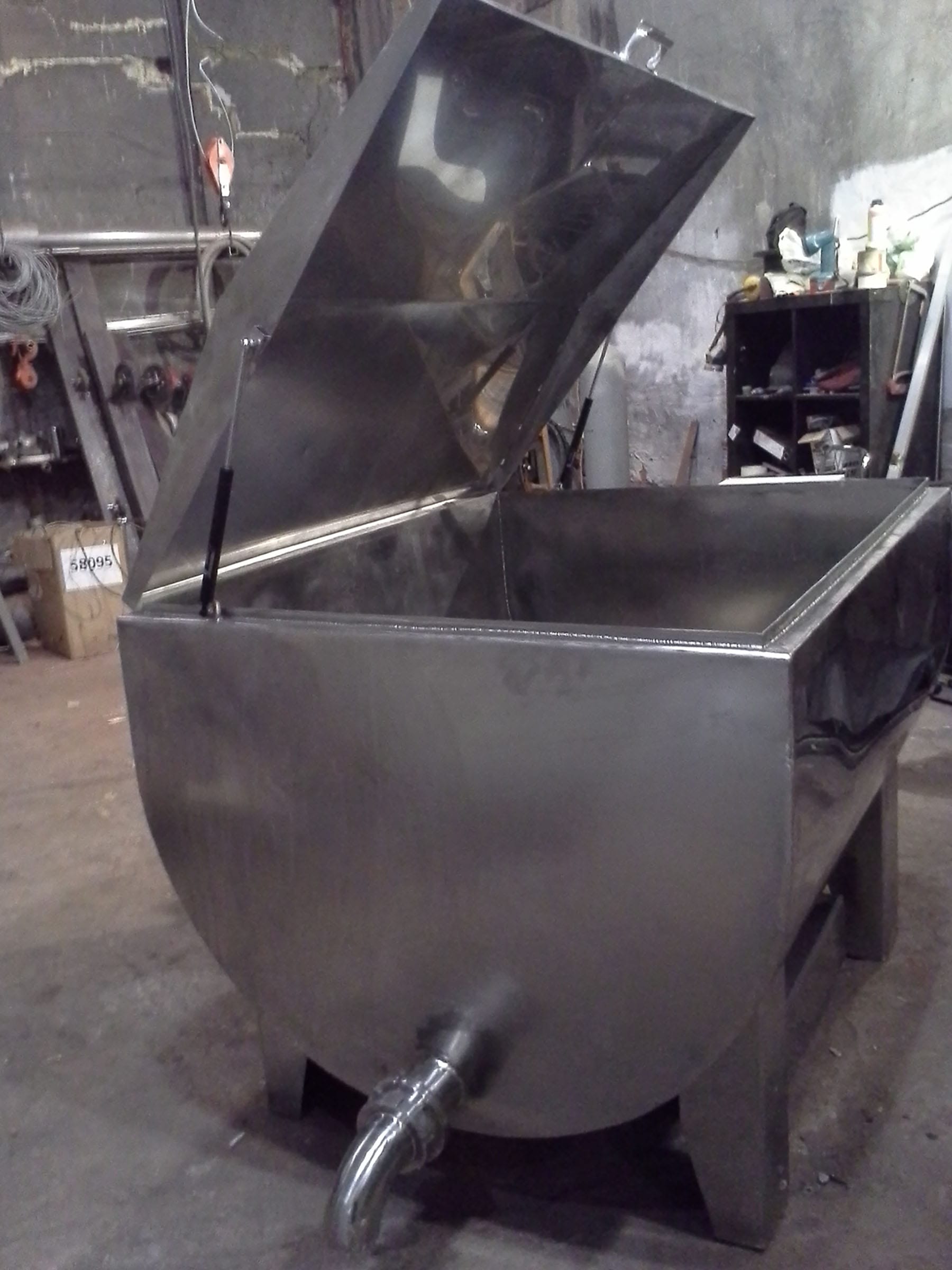

The VT curd vat is the main vessel of a traditional tvorog (quark) production line: in it, standardized milk is heated to the starter inoculation temperature and fermented, and the curd is heated and cooled through a dual-circuit jacket. Heating is by steam or by electric heating elements. Standard models range from 300 to 3,000 L, and up to 6,000 L to order. The finished curd is discharged through a butterfly valve into bags for self-pressing, press trolleys or UPT curd pressing and cooling units.
Process technology
After the vat is filled with milk and the starter culture is added, hot water is fed into the jacket to heat the milk and maintain the required fermentation temperature. When fermentation is complete, the hot water is drained and cold water is fed in to cool the curd. The finished curd is filled into bags through the butterfly valve, and the bags are laid in rows on grids in a self-pressing vat.
The vat can be made to your dimensions and requirements.
Options: - lids on gas struts - manual curd harps - automatic stirring device - multi-section vats with partitions and a press
Price from €4,900. The final cost depends on the configuration, technical specifications and the tasks the equipment is selected for: volume and capacity, heating type, level of automation and options. Write or call us — our process engineer will select a suitable option and prepare a quotation within one business day.
Advantages
- Dual-circuit heating/cooling jacket — the entire tvorog production cycle in one vat
- Steam or electric heating elements, depending on the available energy source
- Even heating and gentle handling of the curd — a delicate tvorog texture
- Works together with self-pressing vats and press trolleys
- Volumes from 300 to 6,000 L, made to your dimensions
Specifications
| Model (VT) | 300 / 600 / 1250 / 2000 / 2500 / 3000 |
| Working capacity, L | 300 / 600 / 1250 / 2000 / 2500 / 3000 |
| Maximum steam consumption, kg/h | 35 / 70 / 150 / 260 / 310 / 350 |
| Heating element power (electric version), kW | 12 / 24 / 36 / 48 / 60 / 72 |
| Drain pipe diameter, mm | 50 / 50 / 100 / 100 / 100 / 100 |
| Weight, kg | 130 / 200 / 300 / 340 / 410 / 470 |
| Volumes we have supplied, L | 200 / 600 / 1250 / 1500 / 2000 |
Included in equipment sets
Related articles
FAQ
What volumes of curd vats are available?
Standard models are VT-300, 600, 1250, 2000, 2500 and 3000 L; up to 6,000 L and custom dimensions to order.
Steam or electric heating?
Both options are available. For example, the VT-600 uses up to 70 kg of steam per hour, or 24 kW in the electric version. Choose according to the energy source available to you.
What options are available?
Lids on gas struts, manual curd harps, an automatic stirring device, and multi-section vats with partitions and a press.
What else is needed besides the curd vat?
Equipment for pressing and cooling the tvorog: a self-pressing vat, a press trolley or a UPT pressing unit, and for curd masses an MTV screw mixer.
How much does a curd vat cost?
The price is from €4,900. The final cost depends on volume, heating type and options. We will prepare a quotation within one working day.
Where is this equipment already in operation?
Our website describes 6 projects with this equipment. Regions: Primorsky Krai, Samara Region, Khabarovsk Krai, Chelyabinsk Region, Moscow Region, Ulyanovsk Region. Customers: manufacturing company, family farm. See the "Projects with this equipment" block and the Projects section.
